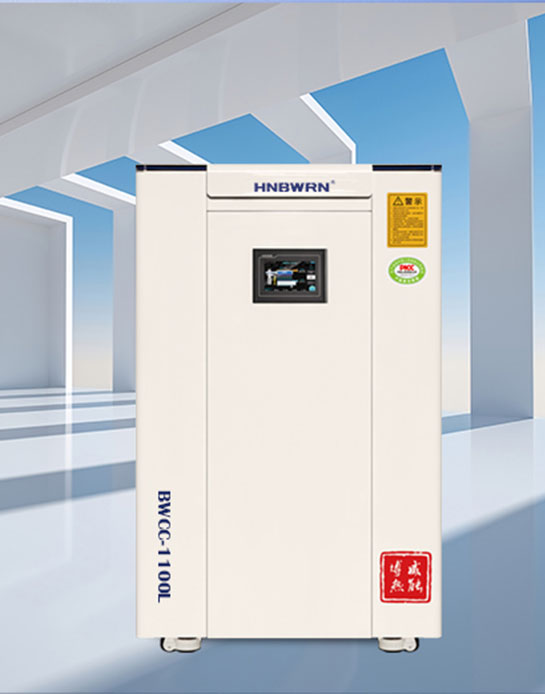

Product Description

The 1100L adopts a heat exchanger made of silicon-magnesium alloy. This heat exchanger is formed at one time, with high density, high thermal conductivity and strong corrosion resistance.The heating area of a single unit can reach 11000 ㎡.

Product Features

• Novel appearance,
• flexible installation,
• digital display microcomputer intelligent control,
• low maintenance cost,
• energy saving and high efficiency.

Product parameters

Model	Unit	BWCC-1100L
Rated Power	KW	1100
Maximum power consumption	Nm3/h	110
Rated working pressure	Mpa	Normal pressure
Gas pressure (dynamic pressure)	Kpa	3-8
Gas Type	natural gas	12T
Gas interface (flange connection)	DN	65
power supply	V/Hz	～380/50
Load adjustment range	%	20-100
Exhaust temperature (outlet and return water 50℃/30℃)	℃	＜40
Thermal efficiency	%	108
Maximum water outlet temperature	℃	85
Flue outlet size	φ㎜	250
Water inlet and outlet interface (flange connection port)	DN	100
Water capacity (boiler body)	L	89.5
Length	mm	2030
Width	mm	1000
High	mm	1410
Hot water supply capacity	m3/h	55
Maximum circulating water flow	m3/h	110
NOx emissions	mg/m3	＜30
CO emissions	mg/m3	＜60
Condensation	pH	6
Noise	dB	＜50
Maximum electrical power	KW	2.4
Weight	KG	679

Packaging &Shipping

Application

Enterprise office buildings, community hospitals, kindergartens, nursing homes, government office buildings, office buildings, business clubs, bath centers, confinement clubs, hotels, chain hotels, villas, independent small courtyards, suburban residential areas, breeding, anti-aging and other seasonal plantings, etc. .
