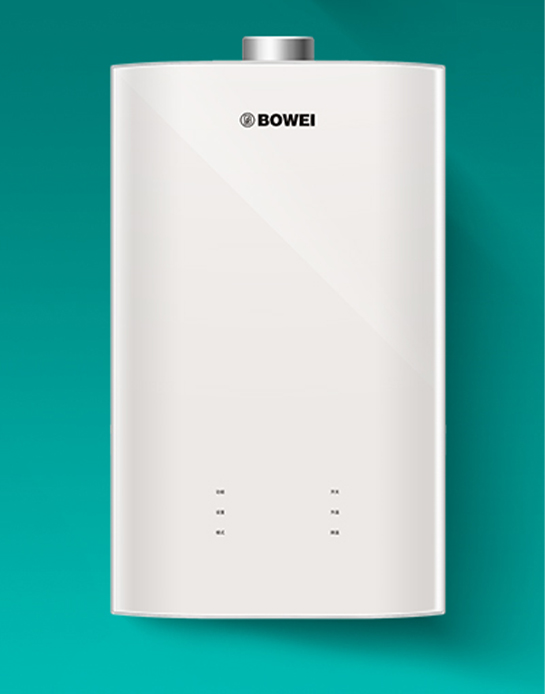

30KW Condensing Gas Wall-hung Boiler
We will provide you with reliable products
Schools, kindergartens, administrative agencies, factories, mines, military hot water supply, airports, stations, docks, hospitals hot water supply, hotels, swimming pools, bathing centers commercial hot water application, etc.
LYRS-12 row stainless steel high-efficiency burner, two-stage combustion, 12 piece stainless steel plate heat exchanger, DO large capacity expansion water tank.
Full house zero cold water function, system self-cleaning function, microcrystalline glass panel, high-quality chassis, imported Grundfos water pump, SOHON strong exhaust fan, European ERCO segmented gas valve group, ultra large and efficient oxygen free copper main heat exchanger, LYRS-12 row stainless steel high-efficiency burner, two-stage combustion, 12 piece stainless steel plate heat exchanger, DO large capacity expansion water tank.
| Unit | L1PB24-BWJ | L1PB28-BWJ |
| natural gas | 12T | 12T |
| Pa | 2000 | 2000 |
| V/Hz | 220/50 | 220/50 |
| kW | 24/11.3 | 28/12.8 |
| kW | 22.4/11 | 26.04/12..4 |
| kW | 24/7.2 | 28/7.2 |
| / | National Standard Level II | National Standard Level II |
| % | 91 | 92.4 |
| W | 113 | 113 |
| W | 113 | 113 |
| W | 0.6 | 0.6 |
| Bar | 3 | 3 |
| L | 5.5 | 5.5 |
| L | 6 | 6 |
| Bar | 1 | 1 |
| L/Min | 12.4 | 14.5 |
| L/Min | 10.7 | 12.4 |
| ℃ | 30-80 | 30-80 |
| ℃ | 30-60 | 30-60 |
| Bar | 0.3-10 | 0.3-10 |
| Bar | 0.5-3 | 0.5-3 |
| / | G3/4 | G3/4 |
| / | G3/4 | G3/4 |
| / | G1/2 | G1/2 |
| mm | 60/100 | 60/100 |
| / | 4 | 4 |
| / | Category I | Category I |
| / | IPX4D | IPX4D |
| kg | 35.6 | 36.2 |
| mm | 702×410×325 | 702×410×325 |
| mm | 880×480×400 | 880×480×400 |
