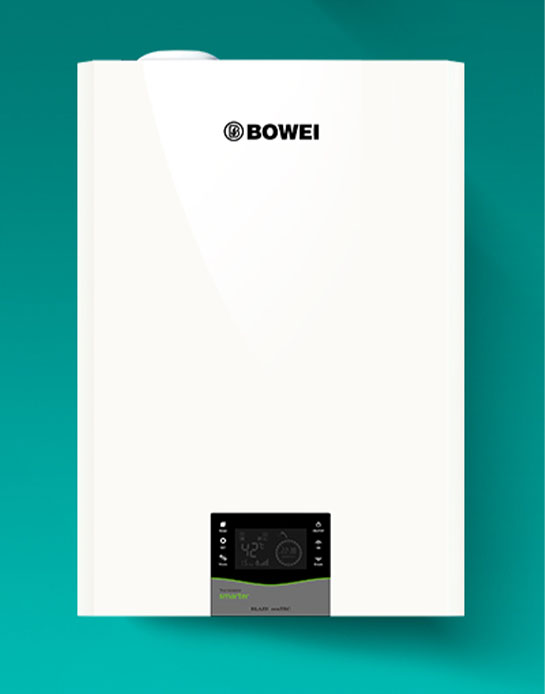

35KW Condensing Gas Wall-hung Boiler
We will provide you with reliable products
Schools, kindergartens, administrative agencies, factories, mines, military hot water supply, airports, stations, docks, hospitals hot water supply, hotels, swimming pools, bathing centers commercial hot water application, etc.
Metal beveled panel, BWCC-M type cast aluminum condensing heat exchanger, fully premixed metal fiber surface burner.
Engineering/Commercial Machine: Metal beveled panel, BWCC-M type cast aluminum condensing heat exchanger, fully premixed metal fiber surface burner.
| Model | LN1GBQ80/99-BGM | |
| project | 80kw | |
| Gas Type | 天然气 | 12T |
| Rated gas pressure | KPa | 1.5-2 |
| power supply | V/HZ | 220/50 |
| Domestic hot water rated heat load | kw | 80 |
| Heating power output range | KW | 5-35 |
| Energy efficiency rating | / | I级 |
| Thermal efficiency | % | 108 |
| Maximum heat load electric power | W | 295 |
| Minimum heat load power | W | 230 |
| Standby power | W | 3.3 |
| Maximum heating operating pressure | bar | 3 |
| Water capacity | L | 8.7 |
| Nominal heat generation tax rate △t=25K | L/Min | 41 |
| Bathroom hot water temperature range | ℃ | 30-60 |
| Bathroom hot water pressure range | bar | 0.3-5 |
| Heating hot water temperature range | ℃ | 30-80 |
| Heating hot water pressure range | bar | 0.5-3 |
| Heating supply/return water interface | / | G3/4" |
| Gas connection | / | G3/4" |
| Hot and cold water connection | / | G1/2" |
| Flue interface | mm | Φ60/100 |
| Maximum condensation water | L/h | 6.4 |
| Condensate pH | PH | 4.8 |
| NOx emission levels | / | 5级 |
| Electric shock protection level | / | I类 |
| Enclosure protection grade | / | IP×4D |
| Weight (without packaging) | Kg | 56 |
| size | mm | 790×640×366 |
