Product Description

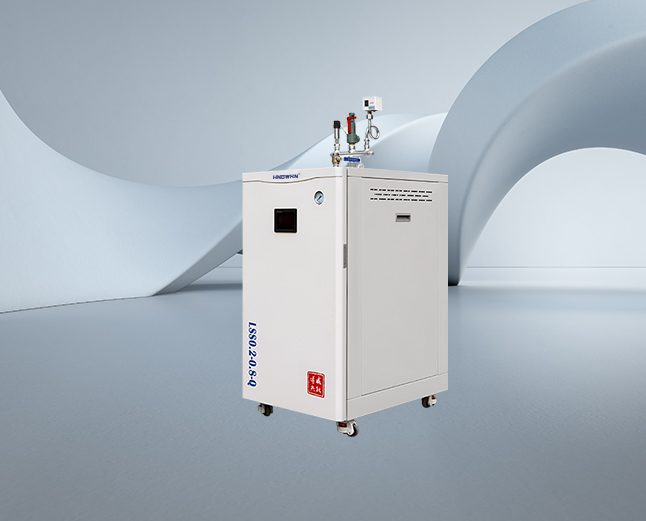

Powerway condensing steam boiler adopts European advanced fully premixed metal fiber surface combustion technology, equipped with original imported frequency conversion fan and gas proportional valve combination, uses microcomputer controller to automatically pre-mix gas and air to the best combustion ratio, according to the end heat load The size of the demand is transported to the metal fiber burner to realize the surface blue flame thermal radiation combustion, which greatly improves the combustion dew point and makes the flue gas enter the condensation stage as soon as possible, thereby greatly increasing the thermal efficiency and reducing the generation of NOx.

Features

• Fast air output, steam output in 30 seconds,
• 30 liters of inspection-free water volume, low exhaust gas temperature,
• Flexible and on-demand application of 0.1Mpa-1.0Mpa, and the maximum temperature can reach 185°C

Product parameters

Model	Unit	BW-LSS0.2-0.8-Q
Rated evaporation capacity	kg/h	200(Max)
Rated steam pressure	Mpa	0.8
Operating water capacity	L	＜30
Thermal efficiency	%	103
Steam dryness	/	≥98
Control method (customizable language)	%	Frequency conversion
Adjustment range	Nm3/h	20-100
Maximum gas consumption	mg/m³	15
NOx emissions	℃	＜30
Exhaust temperature	φ/㎜	＜80
Smoke outlet	DN	75
Water Inlet	DN	15
Sewage outlet	DN	20
Safety valve	DN	20
Steam outlet	natural gas	25
Gas pressure	Kpa	12T
Gas connection	DN	2-3
Power supply	V/Hz	220/50
Electric power	KW	0.35
Dimensions	MM	820*600*1050
Equipment weight	KG	176

Packaging &Shipping

Application

Textile printing and dyeing, wine distillation, hotel bathing, biopharmaceuticals, chemical manufacturing, food processing, feed processing, paper packaging, sterilization, agricultural applications, washing and dyeing, etc.
