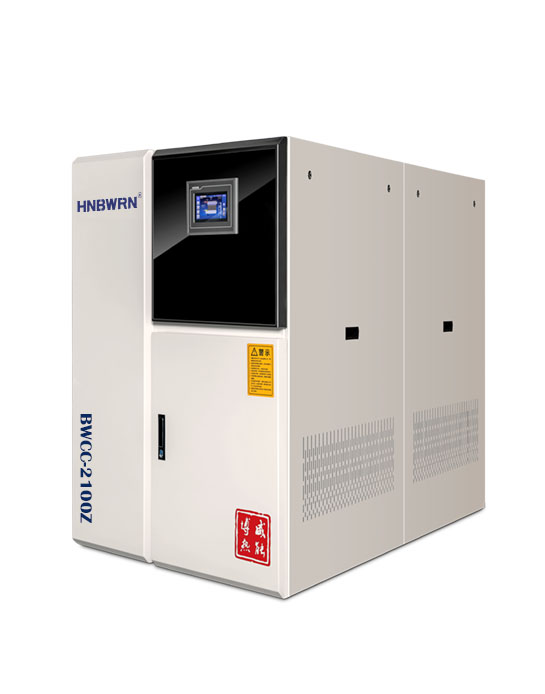

Product Description

The Z series product is a high-end product with a heating area of 35,000 ㎡ -56,000 ㎡ for a single unit. It adopts a silicon-made magnesium alloy heat exchanger independently developed by Bowei, combined with condensing technology, which can save energy by more than 30% compared with traditional boilers.

Features

• 16 protections;
• safe and reliable;
• automatic operation;
• simple operation;
• remote control

Product parameters

Model	Unit	BWCC-2100Z
Rated Power	KW	2100
Maximum power consumption	Nm3/h	210
Rated working pressure	Mpa	Normal pressure
Gas pressure (dynamic pressure)	Kpa	5-30
Gas Type	natural gas	12T
Gas interface (flange connection)	DN	80
power supply	V/Hz	～380/50
Load adjustment range	%	20-100
Exhaust temperature (outlet and return water 50℃/30℃)	℃	＜40
Thermal efficiency	%	108
Maximum water outlet temperature	℃	85
Flue outlet size	φ㎜	400
Water inlet and outlet interface (flange connection port)	DN	125
Water capacity (boiler body)	L	234
Length	mm	2180
Width	mm	1300
High	mm	2050
Hot water supply capacity	m3/h	105
Maximum circulating water flow	m3/h	210
NOx emissions	mg/m3	＜30
CO emissions	mg/m3	＜60
Condensation	pH	6
Noise	dB	＜70
Maximum electrical power	KW	3.8
Weight	KG	1300

Packaging &Shipping

Application

Enterprise office buildings, community hospitals, kindergartens, nursing homes, government office buildings, office buildings, business clubs, bath centers, confinement clubs, hotels, chain hotels, villas, independent small courtyards, suburban residential areas, breeding, anti-aging and other seasonal plantings, etc.
