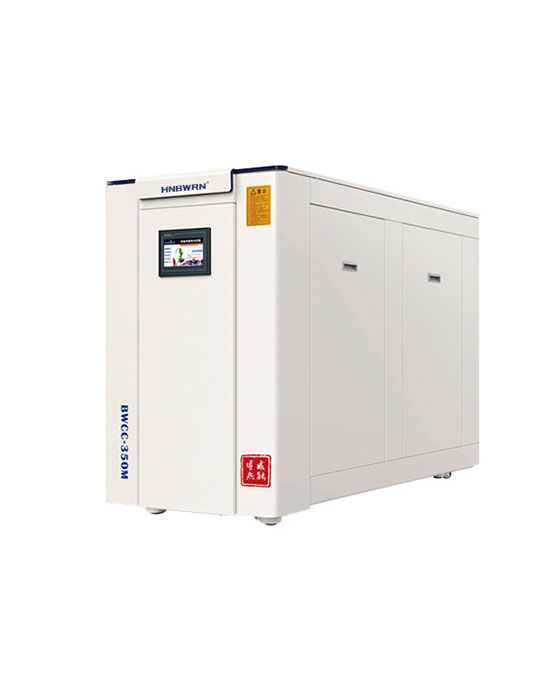

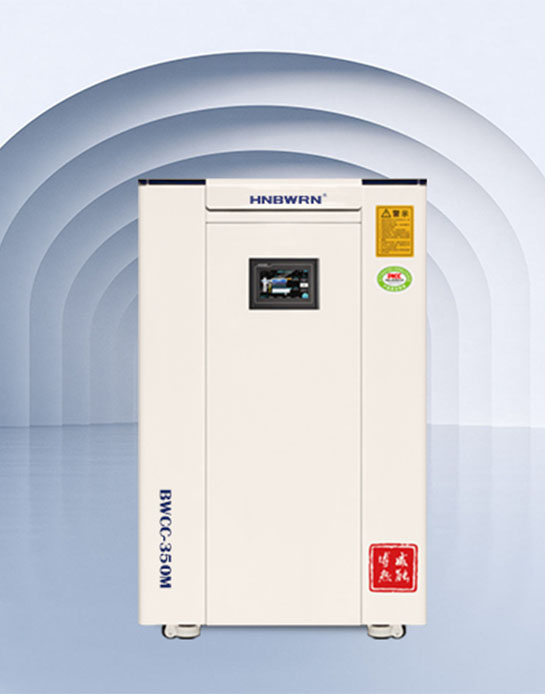

BWCC-350 M Condensing Boiler
We will provide you with reliable products
Schools, kindergartens, administrative agencies, factories, mines, military hot water supply, airports, stations, docks, hospitals hot water supply, hotels, swimming pools, bathing centers commercial hot water application, etc.
The combustion chamber is fully water-cooled, with parallel water channels and low water flow resistance.
Modular silicon-cast aluminum heat exchanger is used, which has strong corrosion resistance, good mechanical properties and a service life of up to 30 years. The combustion chamber is fully water-cooled, with parallel water channels and low water flow resistance. The flue system heat exchange and condensation integrated rib column combination has high thermal conductivity (thermal conductivity is 8~12 times that of stainless steel), thermal efficiency up to 108%, greatly saving gas costs;
The equipment technology is mature, using European imported accessories, safe and reliable, stable operation, low noise;
Central constant temperature control, small footprint, flexible and easy installation, remote control, Chinese display microcomputer intelligent control (simple operation, low maintenance cost, saving personnel management expenses);
Ultra-low emission NOx <30mg/m (lower than the national environmental protection emission standard);
Condensation technology, multiple protections, low operating costs (saving more than 30% of the operating costs of traditional boilers and other heating equipment);
Small size, light weight, easy to transport and install;
Multiple units can be combined for online control, subverting one use and one standby, reducing equipment investment costs;
| Model | Unit | BWCC-350M |
| Rated Power | KW | 350 |
| Maximum power consumption | Nm3/h | 35 |
| Rated working pressure | Mpa | Normal pressure |
| Gas pressure (dynamic pressure) | Kpa | 2-8 |
| Gas Type | natural gas | 12T |
| Gas interface (flange connection) | DN | 40 |
| power supply | V/Hz | ～220/50 |
| Load adjustment range | % | 20-100 |
| Exhaust temperature (outlet and return water 50℃/30℃) | ℃ | ＜40 |
| Thermal efficiency | % | 108 |
| Maximum water outlet temperature | ℃ | 85 |
| Flue outlet size | φ㎜ | 200 |
| Water inlet and outlet interface (flange connection port) | DN | 50 |
| Water capacity (boiler body) | L | 20 |
| Length | mm | 1210 |
| Width | mm | 690 |
| High | mm | 1190 |
| Hot water supply capacity | m3/h | 17.5 |
| Maximum circulating water flow | m3/h | 35 |
| NOx emissions | mg/m3 | ＜30 |
| CO emissions | mg/m3 | ＜60 |
| Condensation | pH | 6 |
| Noise | dB | ＜50 |
| Maximum electrical power | KW | 0.45 |
| Weight | KG | 269 |
Decentralized regional heating, such as enterprises, hospitals, administrative office buildings, office buildings, hotels, bathing centers, colleges, shopping malls, markets, etc.
The Vienna Hotel brand was founded in 1993. It is a high-end hotel chain in China.
Zhengzhou Third Hospital, china
Hospitals require a lot of steam to sterilize and solidify medicines and medical devices
