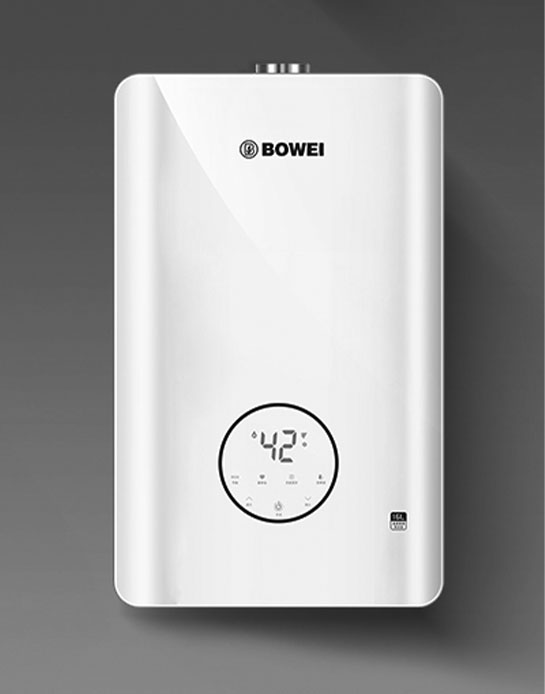

JSQ25-16Z/B8-2

We will provide you with reliable products

Schools, kindergartens, administrative agencies, factories, mines, military hot water supply, airports, stations, docks, hospitals hot water supply, hotels, swimming pools, bathing centers commercial hot water application, etc.

JSQ25-16Z/B8-2

Zero cold water function for the whole house, 16 liters/minute – large hot water capacity.

Gas Type Natural gas (12T)
Rated gas pressure 2000Pa
Applicable water pressure 0.025-0.8MPa
Rated heat load 25.0 KW

CHAT ONLINE 

Product Description

13L/min - large hot water capacity,
microcrystalline glass panel, high-quality chassis,
large and efficient oxygen-free copper water exchange tank,
high-efficiency stainless steel burner,
DC frequency conversion 4-stage combustion,
segmented gas valve group, intelligent hot water constant temperature function, silent operation.

Product parameters

Product Model	JSQ25-13Z/B8-1
Gas Type	Natural gas (12T)
Rated gas pressure	2000Pa
Applicable water pressure	0.025-0.8MPa
Rated heat load	25.0kW
Years of invalidation	8 years (from the date of sale)
Rated hot water production capacity	13kg/min(△t=25K)
Rated voltage	220V-50Hz
Rated electrical power	38W
Enclosure protection grade	IPX2
Implementation Standards	GB6932-2015/GB20665-2015
